Predictive Digital Twin for Post-Acute Healthcare Recovery

Executive Summary

Tech4Biz partnered with Northeast Regional Healthcare System (NRHS), a consortium of five major hospital networks serving over 3 million patients annually, to develop a groundbreaking Predictive Digital Twin platform. The platform addressed critical challenges in post-acute care monitoring, helping reduce hospital readmissions and improve recovery outcomes for patients transitioning from hospital to home settings. The solution combined wearable technology, electronic health record (EHR) integration, and advanced machine learning models to create individualized predictive models for each patient’s recovery journey.

Industry Context

Healthcare Challenges in Post-Acute Care

The healthcare industry has long struggled with optimizing the post-acute care phase. According to industry data from 2023, approximately 18% of Medicare patients were readmitted within 30 days of discharge, costing the US healthcare system an estimated $26 billion annually. Meanwhile, value-based care initiatives and bundled payment models had increased financial pressure on healthcare providers to prevent avoidable readmissions.

Client Background

Northeast Regional Healthcare System (NRHS) faced several key challenges:

  1. High Readmission Rates: Despite implementing standard follow-up procedures, NRHS experienced a 22% readmission rate for high-risk patients (those with chronic heart failure, COPD, and post-surgical complications).
  2. Limited Visibility: Once patients left the hospital, care teams had minimal insight into recovery progress until the next scheduled appointment or until a complication became severe enough to warrant emergency care.
  3. Data Fragmentation: Valuable patient data existed in silos across EHR systems, wearable devices, and patient-reported outcomes, with no unified platform to integrate and analyze this information.
  4. Regulatory Pressure: The Centers for Medicare & Medicaid Services (CMS) had increased penalties for excessive readmission rates, creating financial exposure for the hospital network.
  5. Resource Constraints: Care teams were overwhelmed with patient volumes, making it difficult to provide consistent monitoring for all discharged patients.

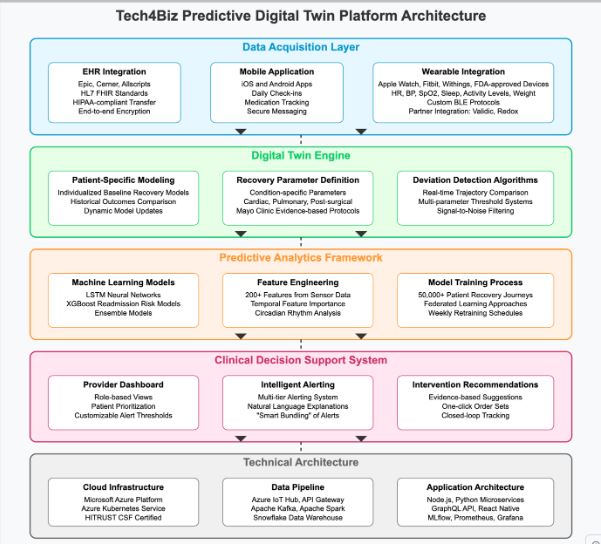

Solution Architecture

Tech4Biz developed a comprehensive Predictive Digital Twin platform that created a virtual representation of each patient’s expected recovery trajectory, allowing for real-time comparison between expected and actual health metrics. This solution consisted of four integrated components:

1. Data Acquisition Layer

Wearable Integration:

  • Implemented compatibility with multiple consumer and medical-grade wearable devices (Apple Watch, Fitbit, Withings, and FDA-approved devices)
  • Collected continuous biometric data including heart rate, blood pressure, SpO2, sleep patterns, activity levels, and weight
  • Deployed custom Bluetooth Low Energy (BLE) protocols for efficient data transmission with minimal battery impact

Mobile Application:

  • Developed patient-facing mobile applications for iOS and Android platforms
  • Created intuitive daily check-in questionnaires dynamically tailored to specific conditions
  • Implemented medication adherence tracking with barcode scanning capabilities
  • Included secure messaging functionality between patients and care teams

EHR Integration:

  • Established bidirectional interfaces with Epic, Cerner, and Allscripts EHR systems using HL7 FHIR standards
  • Automated extraction of discharge instructions, medication lists, and baseline clinical measurements
  • Implemented HIPAA-compliant data transfer protocols with end-to-end encryption

2. Digital Twin Engine

Patient-Specific Modeling:

  • Created individualized baseline recovery models for each patient based on:
    • Historical outcomes of similar patients (age, diagnosis, comorbidities)
    • Pre-admission baseline health metrics
    • Hospital course and interventions
    • Discharge status and social determinants of health
  • Implemented dynamic model updates based on ongoing data collection

Recovery Parameter Definition:

  • Developed condition-specific recovery parameters in collaboration with clinical specialists
  • For cardiac patients: heart rate variability, activity progression, weight trends, symptom reporting
  • For pulmonary patients: respiratory rate patterns, oxygen saturation, exercise tolerance
  • For post-surgical patients: mobility metrics, pain levels, wound healing indicators

Deviation Detection Algorithms:

  • Implemented real-time comparison between expected recovery trajectories and actual patient measurements
  • Created multi-parameter threshold systems with contextual awareness (e.g., higher heart rate acceptable during increased activity)
  • Developed proprietary signal-to-noise filtering to reduce false positives

3. Predictive Analytics Framework

Machine Learning Models:

  • Deployed Long Short-Term Memory (LSTM) neural networks for time-series prediction of health deterioration
  • Implemented XGBoost models for readmission risk stratification
  • Created ensemble models combining physiological data with patient-reported outcomes

Feature Engineering:

  • Extracted 200+ features from raw sensor data through advanced signal processing
  • Implemented temporal feature importance to identify early warning indicators
  • Developed circadian rhythm analysis to detect subtle changes in physiological patterns

Model Training Process:

  • Initial models trained on anonymized historical data from 50,000+ patient recovery journeys
  • Continuous model improvement through federated learning approaches
  • Weekly retraining schedules with automated performance monitoring

4. Clinical Decision Support System

Provider Dashboard:

  • Designed role-based dashboards for different members of the care team
  • Created patient prioritization views based on risk scores and deviation severity
  • Implemented customizable alert thresholds based on provider preferences

Intelligent Alerting:

  • Developed multi-tier alerting system with escalation protocols
  • Created natural language explanations of detected anomalies
  • Implemented “smart bundling” of related alerts to reduce alert fatigue

Intervention Recommendations:

  • Provided evidence-based intervention suggestions based on detected deviations
  • Included one-click order sets for common interventions
  • Created closed-loop tracking to measure intervention effectiveness
tablet digital hologram doctor with anatomy human body futuristic researx ray skeleton solution 590464 215252

Implementation Timeline and Process

The project was executed in four phases over an 18-month period:

Phase 1: Discovery and Design (3 months)

  • Conducted extensive stakeholder interviews with clinicians, administrators, IT staff, and patients
  • Performed EHR data architecture analysis and integration planning
  • Developed initial clinical algorithms with medical specialists
  • Created user experience prototypes for patient and provider interfaces

Phase 2: Pilot Implementation (6 months)

  • Selected 3 high-risk patient cohorts for initial deployment:
    • Congestive Heart Failure (CHF) patients
    • Chronic Obstructive Pulmonary Disease (COPD) patients
    • Total joint replacement surgical patients
  • Deployed solution to 500 patients across two hospital locations
  • Established baseline metrics for evaluation
  • Conducted weekly review meetings to refine algorithms and interfaces

Phase 3: Expanded Rollout (6 months)

  • Extended solution to all five hospital networks in the NRHS consortium
  • Expanded to additional patient cohorts (sepsis recovery, stroke rehabilitation)
  • Integrated with existing care management workflows and call centers
  • Implemented automated quality reporting for regulatory compliance

Phase 4: Continuous Improvement (Ongoing)

  • Established governance committee for ongoing clinical algorithm updates
  • Implemented A/B testing framework for new features
  • Created automated model performance monitoring
  • Developed ROI tracking dashboard for administrative stakeholders

Technical Architecture

Cloud Infrastructure

  • Primary Platform: Microsoft Azure with redundant geographic deployment
  • Compute Resources: Azure Kubernetes Service for scalable microservices architecture
  • Storage: Combination of Azure Blob Storage for raw data and Azure CosmosDB for processed information
  • Security: HITRUST CSF certified infrastructure with end-to-end encryption

Data Pipeline

  • Ingestion Layer: Azure IoT Hub for device data, API gateway for EHR integration
  • Stream Processing: Apache Kafka for real-time event processing
  • Batch Processing: Apache Spark for heavy analytical workloads
  • Data Warehouse: Snowflake for longitudinal analysis and reporting

Machine Learning Operations

  • Model Registry: MLflow for version control and experiment tracking
  • Deployment: Kubernetes-based model serving with canary deployment capabilities
  • Monitoring: Prometheus and Grafana for real-time performance metrics
  • Retraining: Automated pipelines with quality gates for model updates


Application Architecture

  • Backend: Microservices architecture using Node.js and Python
  • API Layer: GraphQL for flexible client data fetching
  • Mobile: React Native for cross-platform mobile applications
  • Web Dashboard: React.js with TypeScript and D3.js for visualization
dgert

Implementation Challenges and Solutions

Challenge 1: Data Heterogeneity

Problem: Integrating diverse data sources with varying formats, sampling rates, and reliability presented significant challenges.

Solution:

  • Implemented a canonical data model with flexible transformation layers
  • Created device-specific data quality scoring algorithms
  • Developed gap-filling techniques using statistical and ML methods
  • Established data governance processes with clear ownership

Challenge 2: Clinical Workflow Integration

Problem: Healthcare providers were already experiencing alert fatigue and resistance to additional systems.

Solution:

  • Conducted extensive time-motion studies to understand existing workflows
  • Developed role-based alert routing to appropriate team members
  • Created “ambient intelligence” features that required minimal active interaction
  • Integrated with existing communication tools (secure text, EHR messaging)

Challenge 3: Patient Engagement

Problem: Sustaining patient engagement with wearables and app check-ins beyond the initial weeks.

Solution:

  • Implemented behavioral economics principles with gamification elements
  • Designed progressive disclosure of features to prevent overwhelming patients
  • Created family member support tools to enable care partner assistance
  • Provided personalized insights to demonstrate value to patients

Challenge 4: Privacy and Security

Problem: Managing sensitive health data across multiple systems while maintaining compliance.

Solution:

  • Implemented zero-trust architecture with continuous verification
  • Created granular consent management system for patient data sharing
  • Developed federated learning approaches to minimize data movement
  • Established regular security assessments and penetration testing

Results and Impact

After 12 months of full implementation across all NRHS hospitals, the Predictive Digital Twin platform demonstrated significant improvements in clinical outcomes and operational efficiency:

Clinical Outcomes

  • 40% reduction in 30-day readmission rates for monitored patients
  • 62% decrease in emergency department visits for recovery complications
  • 3.2x faster clinical intervention for deteriorating patients
  • 28% improvement in medication adherence rates

Operational Efficiency

  • $12.4 million annual savings from avoided readmissions and ED visits
  • 22% reduction in scheduled follow-up visits through remote monitoring
  • 4.1 hour daily time savings per care manager through intelligent task prioritization
  • 96% reduction in manual data entry for care transitions

Patient Experience

  • 89% patient satisfaction rate with the digital monitoring program
  • 94% completion rate for daily check-ins during the first 14 days post-discharge
  • 78% of patients reported increased confidence in self-management of their condition
  • 3.5-point improvement in Hospital Consumer Assessment of Healthcare Providers and Systems (HCAHPS) scores

Business Model Innovation

  • Developed new revenue streams through remote patient monitoring reimbursement
  • Created licensing opportunities for condition-specific recovery algorithms
  • Established partnership with three major medical device manufacturers for embedded capabilities
  • Positioned NRHS as an innovation leader, attracting top clinical talent

Technology Partner Ecosystem

Tech4Biz orchestrated a comprehensive ecosystem of technology partners to deliver the complete solution:

  • Medical Device Integration: Collaborated with Validic and Redox for standardized device connectivity
  • Clinical Decision Support: Partnered with Mayo Clinic for evidence-based intervention protocols
  • Natural Language Processing: Integrated Google Healthcare Natural Language API for patient symptom analysis
  • Security Framework: Implemented Microsoft Cloud for Healthcare security blueprint

Future Roadmap

Based on the success of the initial implementation, Tech4Biz and NRHS defined a three-year roadmap for platform evolution:

Near-term (12 months)

  • Expansion to additional clinical conditions (diabetes, behavioral health)
  • Integration of social determinants of health data for more holistic patient modeling
  • Implementation of voice-based interfaces for elderly patients

Mid-term (24 months)

  • Transition to continuous physiological modeling using federated learning approaches
  • Development of family caregiver support tools and dashboards
  • Integration with remote therapeutic monitoring devices (smart pill dispensers, connected therapy equipment)

Long-term (36+ months)

  • Implementation of multi-patient population health digital twins
  • Development of predictive staffing models based on anticipated patient needs
  • Exploration of ambient monitoring technologies to reduce reliance on wearables

Key Learnings and Best Practices

Through this implementation, several critical success factors were identified:

  1. Clinical Leadership: Early and continuous involvement of clinical champions was essential for algorithm development and adoption.

  2. Patient-Centered Design: Focusing on the patient experience first, rather than technical capabilities, resulted in higher engagement rates.

  3. Incremental Rollout: Starting with specific high-risk populations allowed for focused refinement before broader deployment.

  4. Data Quality Management: Establishing robust data quality monitoring was critical for maintaining trust in the system’s recommendations.

  5. Change Management: Investing heavily in training and workflow redesign was as important as the technology itself.

  6. Metrics Definition: Clearly defining success metrics before implementation ensured proper evaluation and ROI assessment.

Conclusion

The Predictive Digital Twin platform developed by Tech4Biz for Northeast Regional Healthcare System demonstrates the transformative potential of combining IoT technologies, advanced analytics, and clinical expertise to solve critical healthcare challenges. By creating virtual models of individual patient recovery journeys, the system enabled proactive interventions that significantly improved outcomes while reducing costs.

This implementation serves as a model for healthcare organizations seeking to extend care beyond the hospital walls while optimizing limited clinical resources. The scalable architecture and evidence-based approach provide a foundation for continued innovation in virtual care models and predictive health monitoring.
